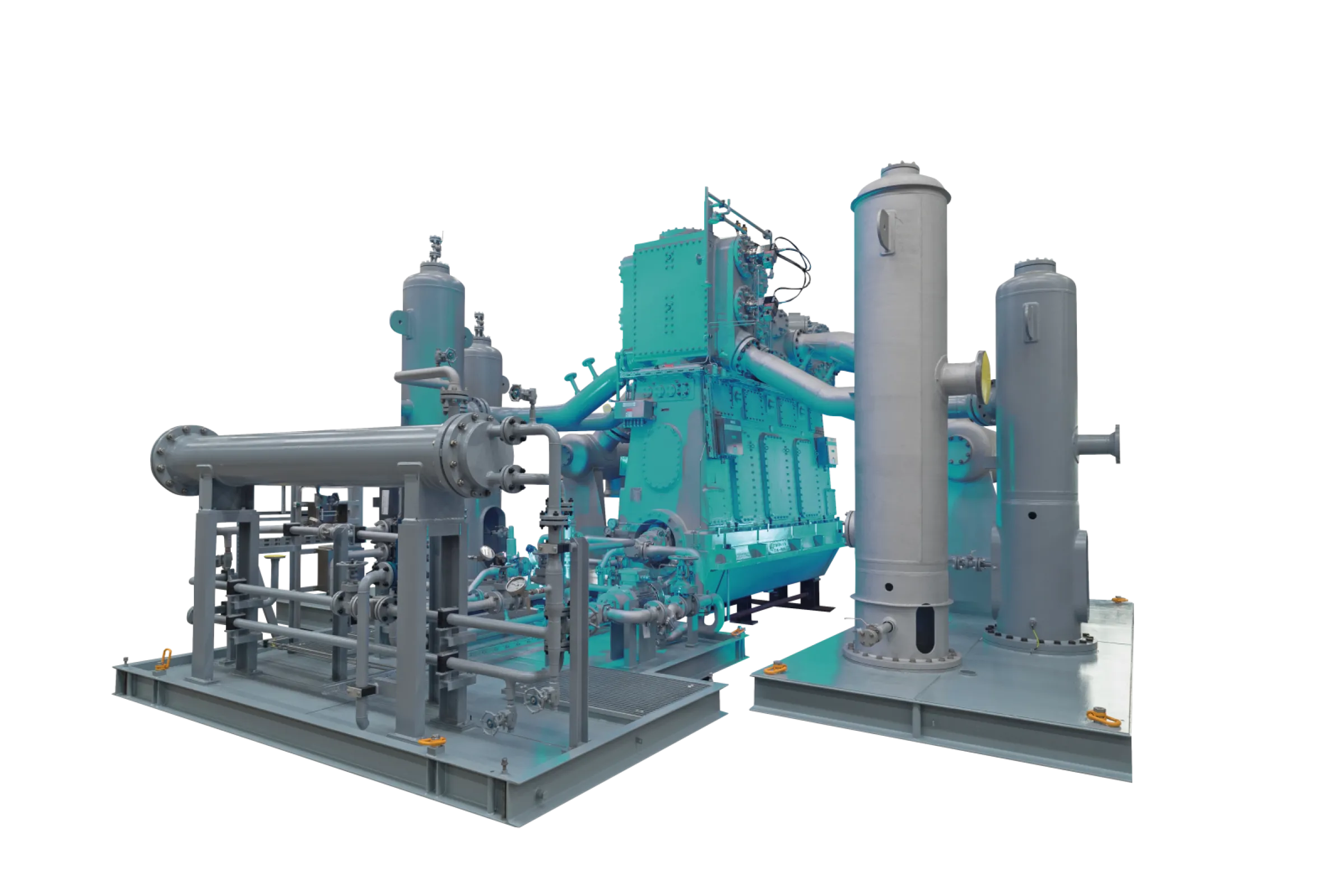

Vertical Type

• most suitable for dry-running operation because of minor wear of the guide elements only

• appropriate for labyrinth compression for more precise guidance of piston and piston rod

• oil-free or lubricated design

• number of cranks: 1, 2, 3, 4, 5

• number of stages: 1 to 8

• discharge pressures: max. 15,000 psi

• power range: max. 20,800 hp

• flow rates: max. 30,000 scfm

V-Type

• balanced mass forces 1st order

• horizontal mass forces only 2nd order

• less space required

• low foundation loads

• oil-free or lubricated design

• number of cranks: 1, 2

• number of stages: 1 to 4

• discharge pressures: max. 6,000 psi

• power range: max. 1,500 hp

• flow rates: max. 2,400 scfm
